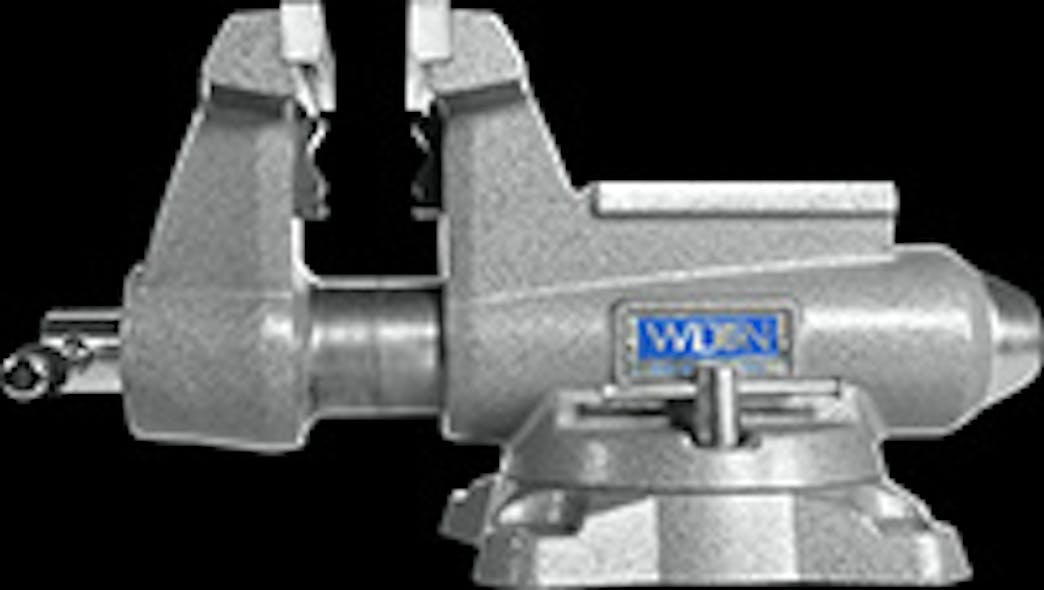

The new Wilton® Mechanics Pro Vise features an exclusive needle roller thrust bearing design that no other vise employs. What sets the design apart is its ability to deliver maximum clamping force with less operator effort. And unlike other vises, operator’s engagement is minimized when the clamping force is released.
These are not “me too” vises. Wilton’s Mechanics Pro Vises are available in five jaw sizes from 4-1/2, 5-1/2, 6-1/2, 8 and 10 in. jaw widths. What distinguishes these heavy duty vises is their premium materials, and other structurally sound intrinsic features such as an enclosed spindle, precision machined slide bar, innovative needle roller thrust bearing design, and 360º swivel base. The Wilton vises are backed by the company’s Lifetime Warranty.
Shop environments can get awfully dirty with grease, oil, lubricants and other solvents. They can wreak havoc on the vises internal parts. Wilton’s enclosed spindle vise eliminates the problem, as well as corrosion and provides smooth, consistent operation. This feature extends the life of the vise by protecting internal components. The vises
are factory lubricated and permanently enclosed with lifetime lubrication for trouble-free service and operation.
The stout Mechanics Pro vises are virtually indestructible with a 60,000 psi ductile iron movable jaw and base to handle stress while providing long lasting durability in the most demanding shop conditions.
The vises also feature an anvil with a large surface area for meet striking and forming tasks. The anvil is designed to take blow after blow while forming and shaping materials.
The 360º swivel base has double lockdowns to secure the vise to a shop bench.
The Wilton Mechanics Pro Vises (4-1/2 in., model 845M, $239.99 MSRP); (5-1/2 in., model 855M, $309.99 MSRP); (6-1/2 in., model 865M, $399.99 MSRP); (8 in., model 880M, $599.99 MSRP) and (10 in., model 8100M, $829.99 MSRP) are available through industrial distributors and online retailers. For further assistance, contact Wilton Consumer Relations at 800-274-6848.
Wilton Mechanics Pro Vises – Specifications
Stock No. | Model No. | Description | Jaw Width (in.) | Jaw Opening (in.) | Throat Depth (in.) | Pipe Jaw Capacity (in.) | Net Weight (lbs.) |
28810 | 845M | Mechanics Pro Vise, 4-1/2 | 4-1/2 | 4 | 3-1/2 | 1/4 - 3 | 31 |
28811 | 855M | Mechanics Pro Vise, 5-1/2 | 5-1/2 | 5 | 3-5/8 | 1/4 - 3 | 37.9 |
28812 | 865M | Mechanics Pro Vise, 6-1/2 | 6-1/2 | 6 | 4-3/8 | ¼ - 4 | 55.6 |
28813 | 880M | Mechanics Pro Vise, 8 | 8 | 8-1/2 | 4-1/2 | 1/2 - 4 | 83.1 |
28814 | 8100M | Mechanics Pro Vise, 10 | 10 | 12 | 5-1/4 | 1/2 - 5 | 115.3 |
About JPW Industries, Inc.
Headquartered in La Vergne, Tennessee, JPW Industries, Inc.® manufactures and markets a wide range of machinery and equipment under the JET, Powermatic and Wilton brands. In addition to its La Vergne headquarters, the company has operations in Switzerland, Germany, Russia, France, Taiwan, and China. It sells through a vast network of distributor partners worldwide. Visit JET Tools at www.jettools.com, Powermatic at www.powermatic.com or Wilton at www.wiltontools.com.
