OCL430MD Hub-Mounted Rotor Lathe

OCL430MD Hub-Mounted Rotor Lathe

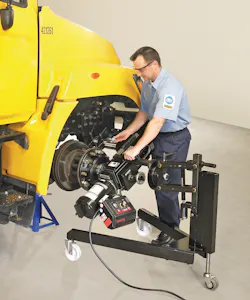

OCL430MD Hub-Mounted Rotor Lathe Product Image

The OCL430MD Hub-Mounted Rotor Lathe is now available from Hunter for shops servicing medium-duty trucks and commercial vehicles. The rotor lathe uses Pro-Comp computerized compensation to adjust for lateral run-out with a push of a button, and a simple 1-point adjustment. The company says after the lathe is mounted to the hub, Pro-Comp conforms the adapter and lathe to the rotor, allowing you to complete machining within OEM specifications in less than 9 minutes. The equipment also boasts of:

  • The ability to resurface rotors up to 17-1/2" in diameter and 3-1/2" in thickness.
  • ServoDrive technology to enable you to vary the spindle speed and rotational torque of the lathe while in operation, without negotiating the final surface finish of the rotors.
  • Anti-Chatter Technology (ACT) that virtually eliminates chatter, according to the company, by oscillating lathe speed while in operation to prevent the buildup of vibration.
  • A reinforced cutting arm and rugged tool holders.
  • A 1.5-HP, 230 VAC motor for additional torque.
  • A trolley, which provides an extended low-to-high working range when a lift rack is unavailable or impractical.
  • The availability of a full selection of adapters and accessories to match medium-duty, commercial-grade vehicle hub and rotor OE specifications.

Expand for more details on this Product

On Car Brake Lathe (OCL 2000)

Product From Robert Bosch Corporation

Featuring a compact design to fit in tight wheel wells, the Bosch On Car Brake Lathe (OCL 2000) quickly turns and resurfaces rotors without disassembling or removing components of a vehicle’s braking system and with no run-out compensation needed. This tool eliminates the need for run-out compensation, providing 100 percent parallel place between brake pads and rotors.

Get Info Now

Universal brake lathe adapter

Product From W.Y. International

The W.Y. International Quick Chuck has a unique self-centering design that makes it a simple, quick and precision brake lathe adapter for machining hubless rotors and drums on any 1" arbor brake lathe. The weight and mass of the Quick Chuck with backing plate virtually stops chatter and vibration in its tracks, while eliminating run-out and set-up problems. The Quick Chuck, with all optional accessories, allows machining of rotors and drums while centering holes from 2-1/8" to 5-3/4", from compact cards through 1-ton trucks.

Get Info Now

QuickComp Lathe

Product From Hunter Engineering Company

Hunter Engineering Company offers the QuickComp lathe featuring a two-way adjustable compensation adaptor that works with Hunter's patented Pro-Comp computerized compensation to adjust for lateral runout of the hub in seconds. This capability allows for shops to refinish rotors within OEM specifications in a matter of minutes. Other features include: ACT (Anti-Chatter Technology), which oscillates the speed of the lathe to prevent the buildup of vibration that can occur on any fixed-speed lathe; ServoDrive, which enables the technician to vary the spindle speed and rotational torque of the lathe while in operation; and reverse rotation, which proves beneficial when servicing some vehicles with limited-slip differentials.

Get Info Now

RL-8500XLT Brake Lathe

Product From BendPak/Ranger

Following up the popular RL-8500 brake lathe, BendPak’s redesigned RL-8500XLT heavy-duty combination brake lathe features an extended capacity spindle that can easily turn even the heaviest drum rotors up to 10" deep. The RL-8500XLT features unlimited feed rate settings to allow the user to modify resurfacing rates with an easy turn of the dial. Now technicians can decrease or amplify the cut duration for the perfect finish, regardless of if they are rushing through the first rough cut or performing a single-pass micro-finish. The RL-8500XLT comes with a strong bench and ample tool storage backboards to keep all adapters within close reach.

Get Info Now

OCL430HD Rotor Lathe

Product From Hunter Engineering Company

With a reinforced cutting arm and rugged tool holders, Hunter's OCL430HD Rotor Lathe resurfaces rotors up to 17.5" in diameter and up to 3.5" in thickness. A 1.5-hp, 230 VAC motor provides the additional torque required for medium- and heavy-duty trucks. This hub-mounted service eliminates the need to disassemble the hub to remove the rotor. The patented ServoDrive system enables users to vary the spindle speed and rotational torque of the lathe while in operation. Pro-Comp computerized compensation adjusts for lateral runout with a push of a button and a simple single-point adjustment.

Get Info Now

Extenda-Feed

Product From Shark Industries

Shark Industries' Extenda-Feed adaptor is capable of extending the reach of the feed to a maximum of 17-15/32". The 5-piece kit works on all Ammco 4000 and 4100 lathes, and gives techs three ranges that allow their lathe to cut larger diameter rotors by using a plate that is placed under the twin cutter and secured with the locking stud.

Get Info Now

Ranger RL8500 complete lathe package

Product From BendPak/Ranger

Ranger Products introduced the Ranger RL8500 complete lathe package that includes lathe, bench, adapters and other helpful accessories. The revolutionary RL8500 uses independent DC servo motors to control the cross feed and spindle feed drives. Infinitely adjustable feed rates allow users the ability to easily modify cut speeds with the simple turn of a dial.

Get Info Now

GYR complete brake repair system

Product From Pro-Cut International

The Pro-Cut GYR complete brake repair system directs a technician to make in-spec brake repairs, and then captures the finished condition of each serviced rotor. The system includes a bar code scanner, laptop computer (with GYR application) and on-car brake lathe. A tamper-proof data system captures and records critical brake geometry upon completion of the brake rotor resurfacing. Reports on every repair can be printed, transmitted via email or even harvested from off-site.

Get Info Now

Carbide Bits for Brake Lathes

Product From Shark Industries

Shark Industries' Carbide Bits for Brake Lathes include Ammco style and Pro-cut style replacement bits. With new 4-color clamshell packaging, these American-made bits come in 6- and 10-packs.

Get Info Now

OCL410 and OCL430MD brake lathe update

Product From Hunter Engineering Company

Hunter OCL410 and OCL430MD brake lathes now ship with a patent-pending reverse rotation feature. Reversing rotation proves beneficial when servicing some vehicles with limited slip differentials, which produce excessive drag on the driveshaft, preventing normal lathe operation.
